Information required when ordering shaper cutters
1, Quantity of shaper cutter
2, Type of cutter - Disc, Shank or Hub with
3, Bore diameter or type of shank fitting required.
4, Pitch - (DP, CP or Module)
5, Pressure Angle.
6, PCD - Approximate pitch circle diameter or number of teeth.
7, Material.
8, Coating.
9, Complete geara or detailed component drawings should be supplied when ordering non-standard gear shaping tools.
相關(guān)文章
-

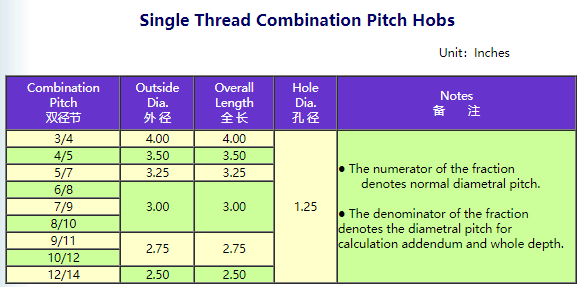

Single Thread Combination Pitch Gear Hobs
