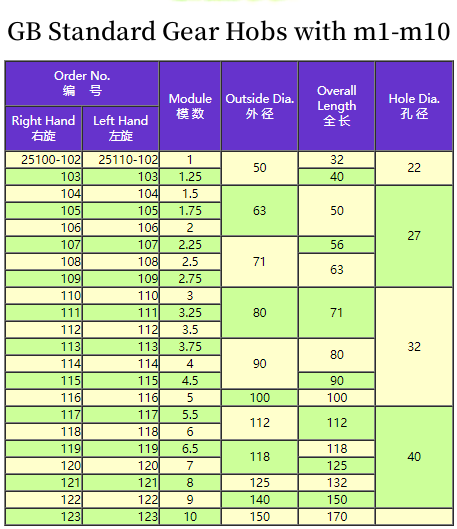

GB Standard Gear Hobs with M1-M10
gear hob for finishing cut, pre-shaving, pre-grinding
tooth profile: GB 6083 standard, quality DIN 3968
HSS M2 or M35 material, with TiN or AP coating
Bore gear hobs are 22mm, 27mm, 32mm and 40mm.etc
Hobs with module 11-24 can also be ordered if needing.
